hemodialysis catheter

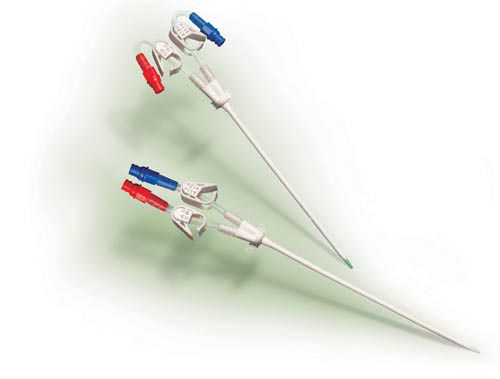

Hemodialysis Access Catheter
Structure	Type of catheter	Oute diameter	Gauge	Length of catheter	Type of Guide-wire
Single-lumen	8Fr	2.7	12Ga	13,16,20	3JFM-035-60
Double-lumen	6.5F	2.2	18Ga,18Ga	13,16	3JFM-038-60
	8F	2.7	14 Ga,14 Ga	13,16,20	3JFM-038-60
	11.5F	3.6	12 Ga,12 Ga	13,16,20	3JFM-038-60
Triple-lumen	12Fr	4.0	16 Ga,12 Ga,12 Ga	13,16,20	3JFM-038-60

Product characteristic:
1.Soft Tip
	Reduces trauma to vessel wall upon introduction and in-situ. The radiopaque catheter and tip facilitates vessel location when visualized by X-Ray.
2.Biocompatible Polyurethane
	Tested for toxicity and hemocompatability,and become softer in body temporature.
3.Easilly-find under X-Ray
	Sufficificently radiopaque materials ensures the correct placement of cathetor.
4.Curved Extensions
	The extensions are curved for jugular vein approaches to make the catheter more comfortable for the patient.
5.Rotating Suture Wing
	Rotating suture wing provides secure external anchoring.
6.Antimicrobial heperine cap
	Specially-made adaptor helps to avoid infection.
7.Multi-lumen available
	Available single,double,triple lumen for infant and adudt.
8.Compund-packaging tray
	Available lots components. Complete Insetrion Set.Supplied with the economical basics for Seldinger Technique Insertion.Catheter,vessel dilator,guidwire,introducer needle,and injection caps.
